How do I transfer devices between Transformer libraries?

You have been e-mailed a library file (Transformer.lib) containing a new device that does not currently exist in the library file (PTW.lib) on your computer. The new device is a dry type transformer by GE. It was created in the Transformer section of the library.

Step 1 - Copy this file to the (C:)\PTW32\Lib directory on your hard drive.

Step 2 - Start PTW

Step 3 - Open the existing PTW.lib file by selecting the Document pull-down menu. Select theLibrary menu item.

faq_21_01

Step 4 - In the "Select Document Type" dialog, select the "PTW Library" and click on the "OK" button.

faq_21_02

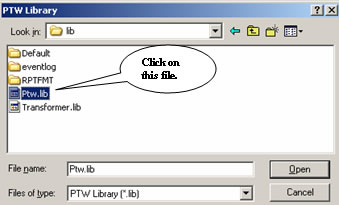

Step 5 - On the next window, select the PTW.LIB file and click on the "Open" button.

faq_21_03

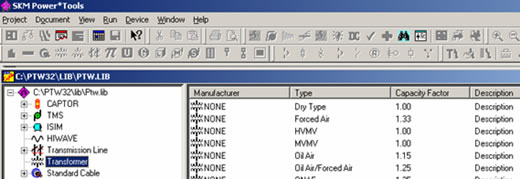

Step 6 - The new device exists in the Transformer category of the library. Select theTransformer category of the library.

faq_21_04

Step 7 - Open the Transformer.lib file containing the new transformer by selecting theDocument pull-down menu. Select the Library menu item.

faq_21_05

Step 8 - In the "Select Document Type" dialog, select "PTW Library" and click on the "OK" button.

faq_21_06

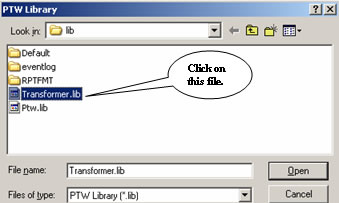

Step 9 - On the next window, select the Transformer.lib file and click on the "Open" button.

faq_21_07

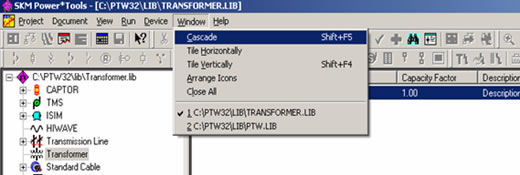

Step 10 - Cascade the windows by selecting the Window pull-down menu. Select the Cascademenu item.

faq_21_08

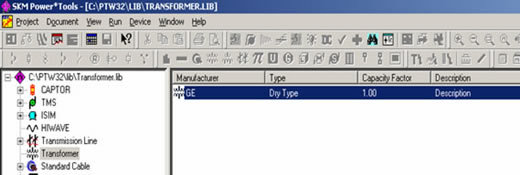

Step 11 - The new device exists in the Transformer category of the library. Select theTransformer category of the library.

faq_21_09

Step 12 - Select the new device by clicking on it once so that it is highlighted.

faq_21_10

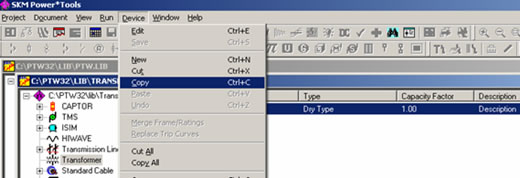

Step 13 - Select the Device pull-down menu. Click on the Copy menu item.

faq_21_11

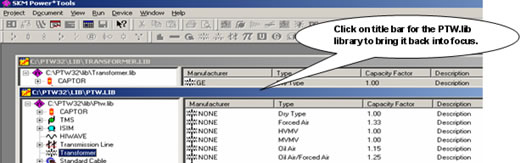

Step 14 - Bring the existing PTW.lib file back into focus, and click on the Transformer library category.

faq_21_12

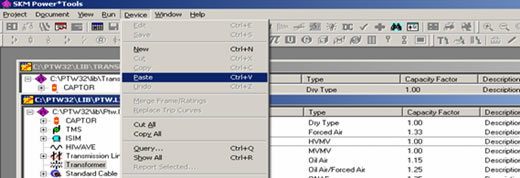

Step 15 - Select the Device pull-down menu again. Click on the Paste menu item.

faq_21_13

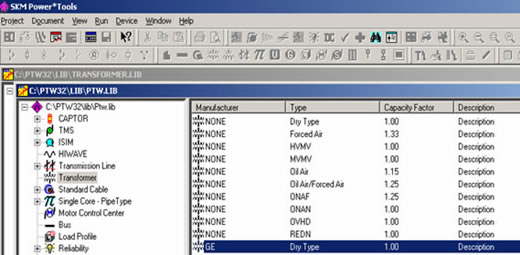

The new device(s) now resides in your existing library. Initially, it will be added to the end of the list, but it will be sorted alphabetically next time the library is opened or until you switch between different library categories.

faq_21_14

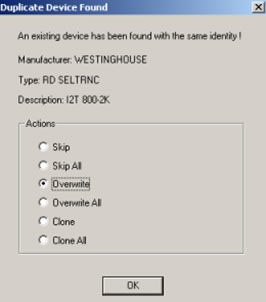

Notes: If the transfomer device(s) you are pasting into the destination library already exist, the following dialog will appear. Select the appropriate option and click on the "OK" button.

faq_21_15

If you have additional questions, please feel free to contact tech support.
